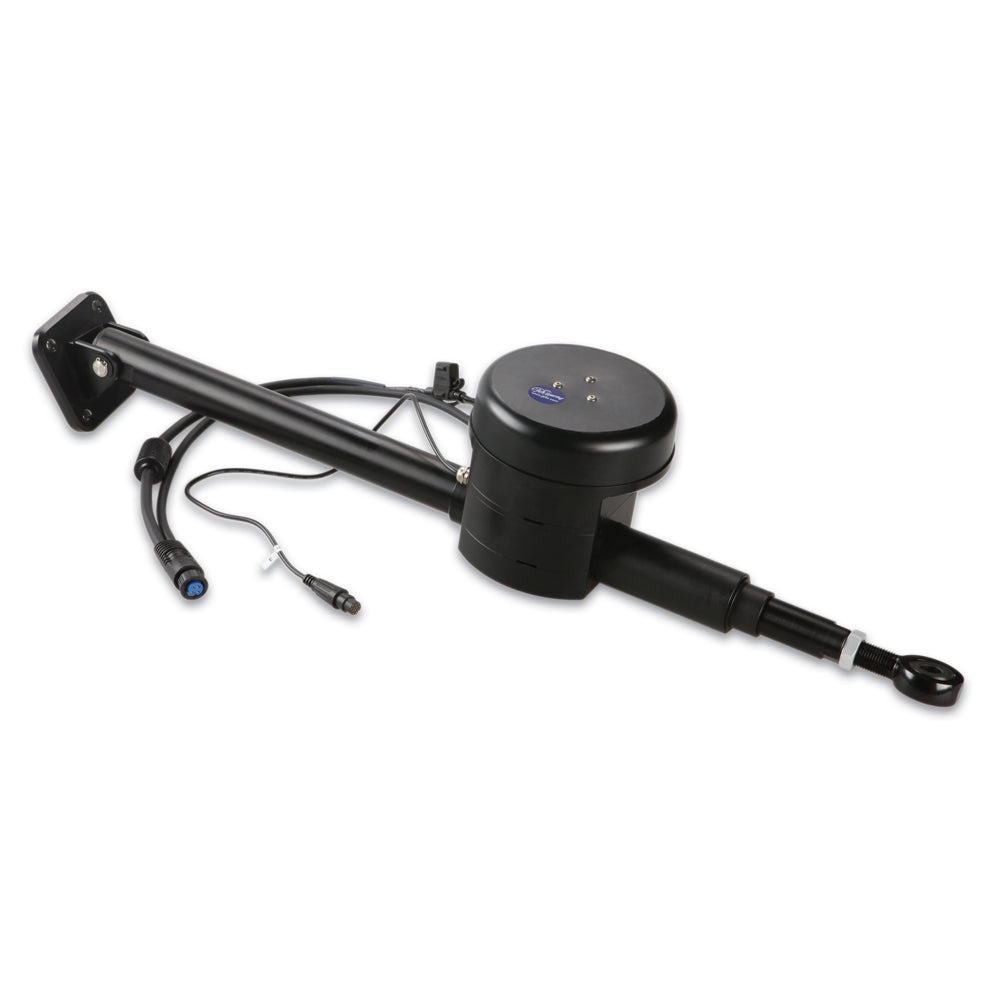

Garmin Class A Mechanical Drive Unit

• Drive Unit Type: Linear
• Stroke Length: 12" (303 mm)
• Maximum Thrust: 800 lb (400 kg)
• Dimensions (centered): 32.3" x 6.5" x 6.1" (820 x 165 x 155mm)
• Supply Voltage: 10V to 30V
• Average Clutch Current at 12V: 0.5 Amps
• Average Motor Current at 12V: 1-2 Amps
• Operating Temperature: -15°C to 60°C (5°F to 140°F)

The Class A Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat's steering system. This device is designed for use with larger sailboats with up to 12.9 tonnes (12 927 kg) of displacement.
