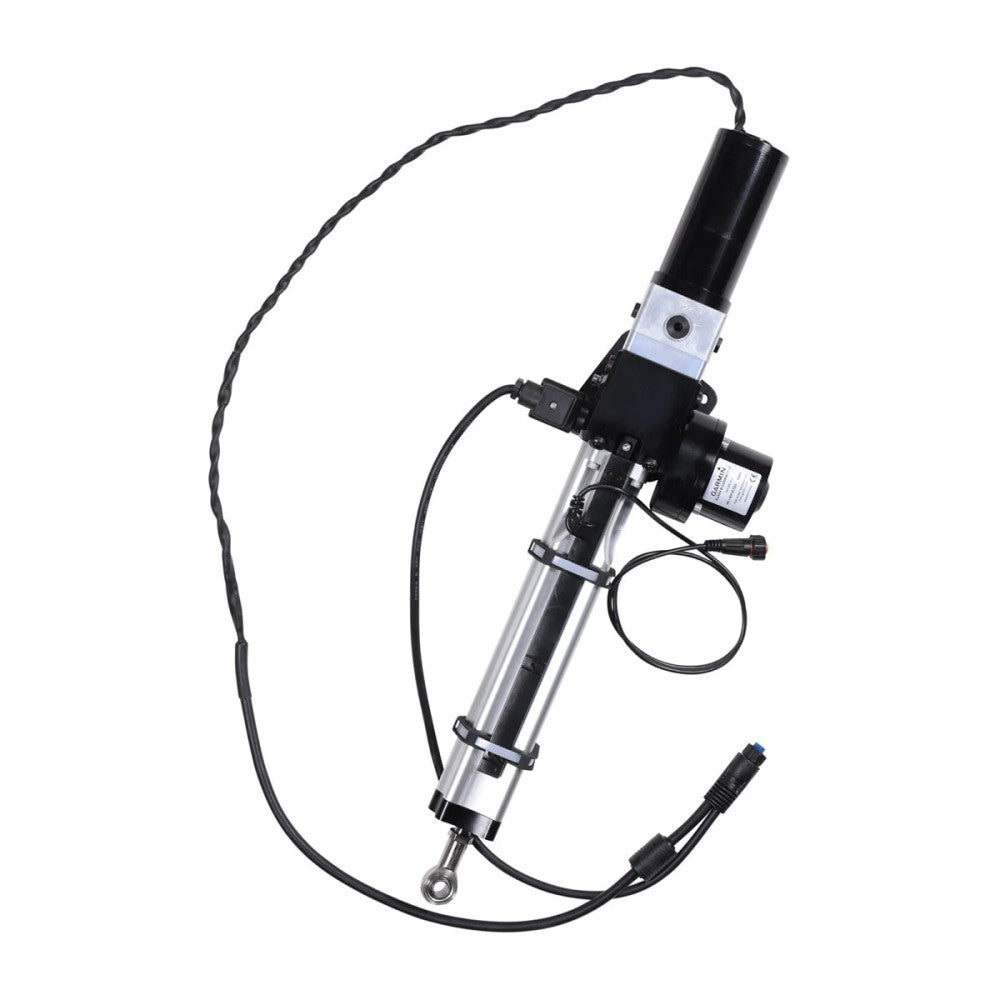

Garmin Class B Compact v2 Drive Unit

• Dimensions: 810 x 120 x 225mm (31.9″ x 4.6″ x 8.9″)
• Drive Unit Type: Integrated hydraulic linear
• Stroke length: 254 mm (10″)
• Maximum thrust: 730 kg (1.610 lbs)
• Supply voltage: 10V to 30V (regulated to 12V by the ECU)
• Average clutch current at 12V: 1 Amp
• Average motor current at 12V: 2-4 Amps
• Operating temperature: -15°C to 50°C

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 24 tons (48 400 lbs) of displacement.
