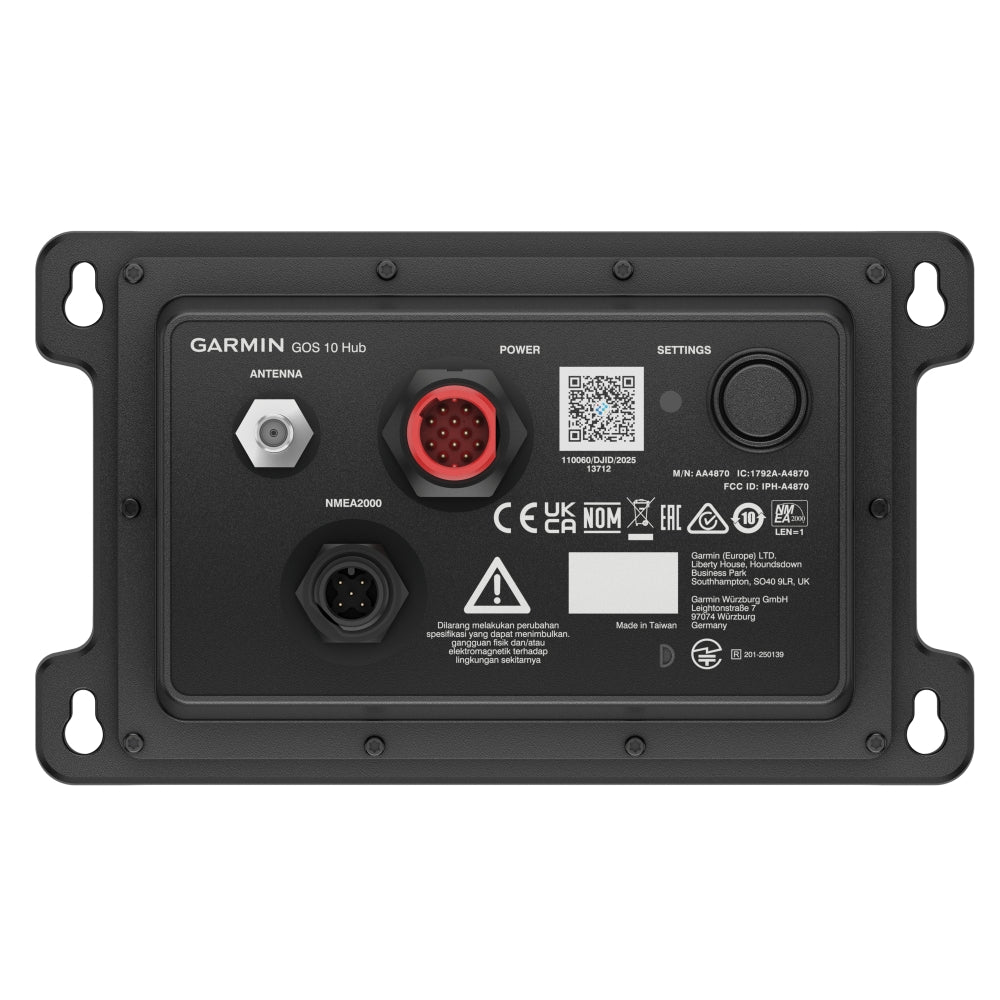

Garmin GOS 10 Hub - Garmin Onboard System

• Dimensions: 91.55 x 155.12 x 48.47mm
• Weight: 171.7g
• Wireless range: Up to 20m (66 ft)
• Supply voltage range: 10-32 V
• Operating temperature range: -15 C to 70 C
• Typical power consumption: 50mA @ 12 V or 0.6 W
• NMEA 2000 LEN: 1
• Engine compatibility: Inboard outboard sterndrive from all major manufacturers
• Engine interface: Hardwired in-line connection to ignition harness
• Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
• Water rating: IPX6 and IPX7
• Compass-safe distance: 5 cm

Protect passengers loved ones and crew with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of the Garmin OnBoard system the GOS 10 Hub communicates wirelessly with the MOB tags and connects to the vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.

In The Box

• GOS 10 Hub for the Garmin OnBoard system
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Installation hardware
• Documentation
