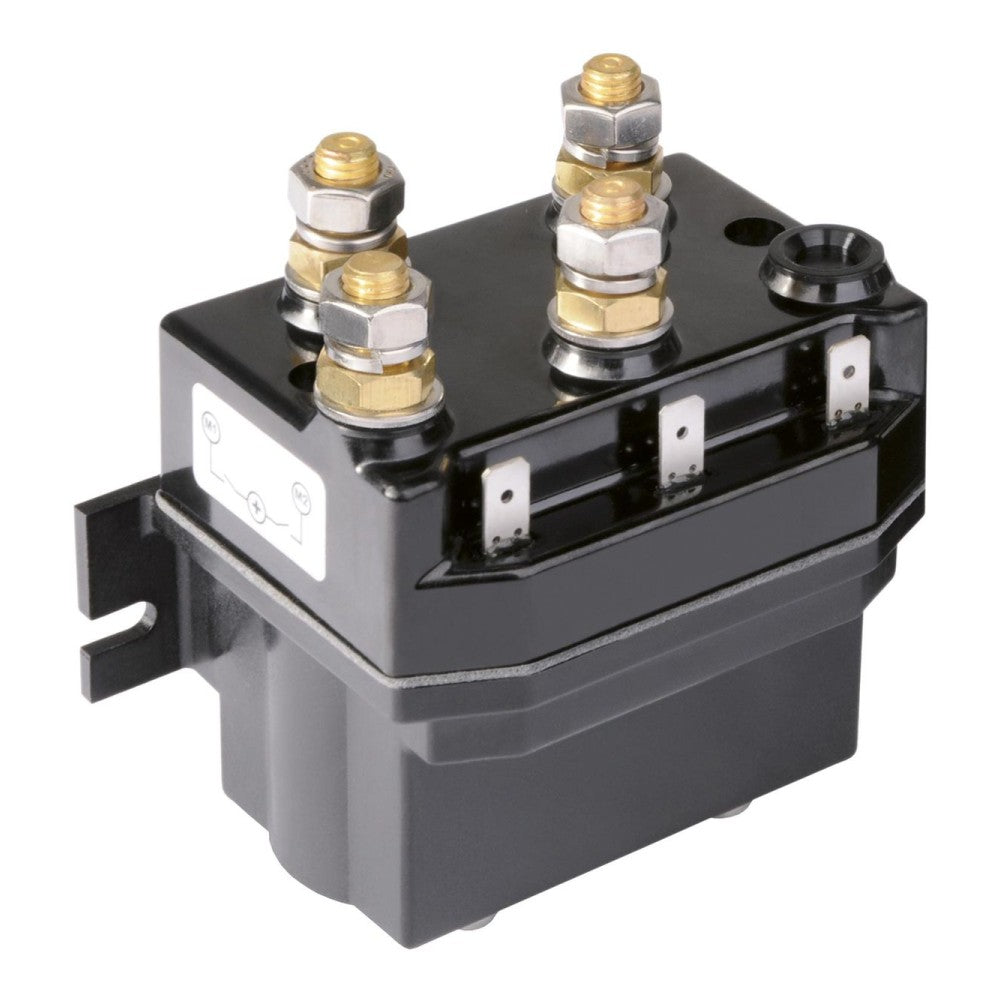

Quick T6415-12 Reversing Contactor Unit - 12V

• Maximum power of the windlass/capstan motor: 2500W
• Max contact voltage: 48 Vdc
• Interruption capacity: 800 A @ 48 Vdc
• Working intermittent current (50% of work cycle) (Ie): 150A
• Coil rated voltage: 12 Vdc
• Recommended fuse: 2.5 A Fast
• Protection: IP66
• Weight: 980g

The contactor and reversing contactor units T6315 or T6415 are able to operate electric motors for windlasses and capstans. Thanks to their external connections they are very easy to install.
