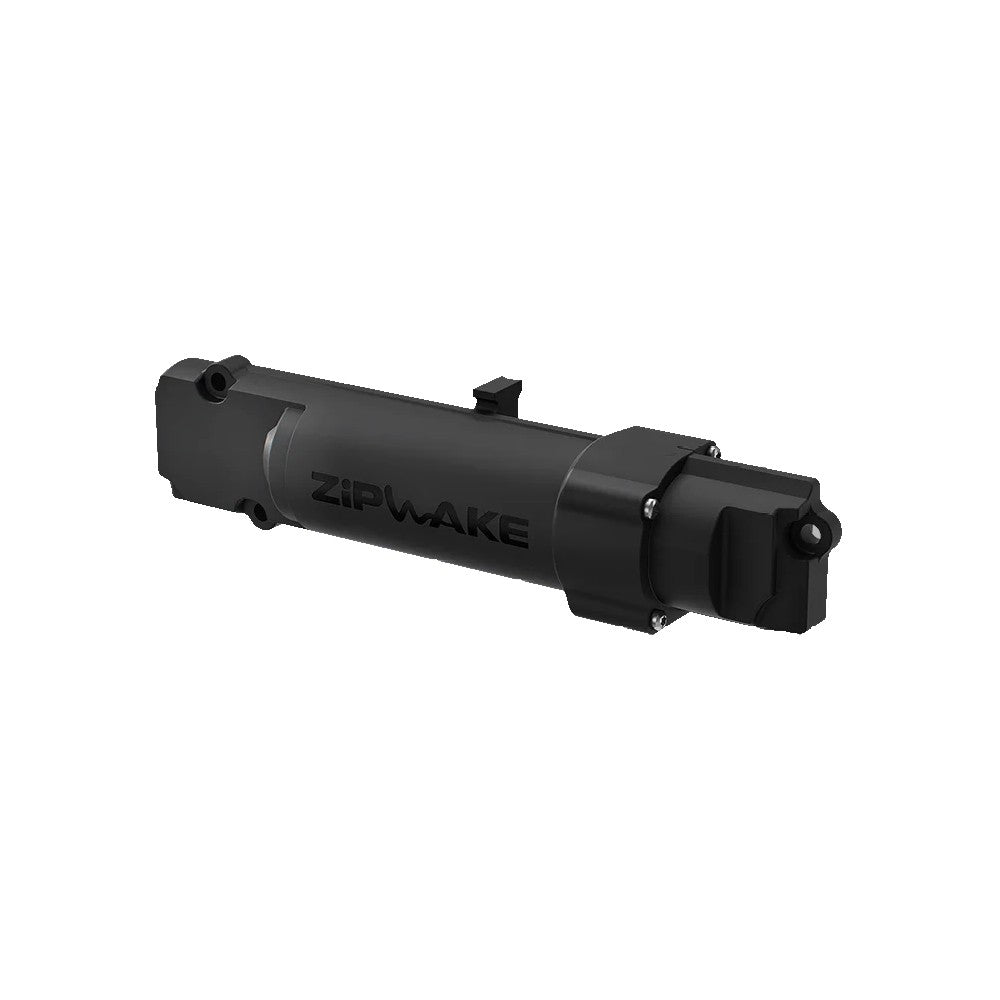

Zipwake SU-S - Series S Servo Unit With 3m Cable

• Servo Motor Type: Brushless DC with Hall sensors
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 25 W max
• Operating Temperature: 0° to +40°C (+32° to +104°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP68 5 m (16 ft)
• Compliance: CE FCC
• Cable Length: 3 m (10 ft) extendable up to 6 m (20 ft)
• Cable Material: PUR
• Connector: M12 5-pin circular
• Connector Diameter: 14.5 mm (0.57 in)
• Weight: 0.75 kg (1.7 lbs) including cable
• SU-S - For Series S interceptors.

The Series S submersible electrical Servo Unit fits inside the interceptor where it drives with precision the mechanism that provides linear motion to the interceptor blades. The unit is fast-acting durable calibration free and easy to install or replace. It comes with a rugged 3 m cable with self-sealing thru-hull fitting.
